Belden 3106A 22 AWG 1 Pair/1 Conductor Shield EIA Industrial RS-485 PLTC/CM

Min: 10 ft., Max: 5000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 3106A 22 AWG 1 Pair/1 Conductor Shield EIA Industrial RS-485 PLTC/CM

SKU
BEL3106A-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

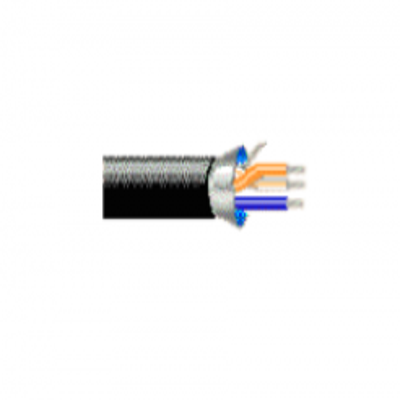

Belden 3106A - 22 AWG stranded (7x30) tinned copper conductors, Datalene® insulation, twisted pairs, overall Beldfoil® shield (100% coverage) plus a tinned copper braid (65% coverage), drain wire, UV resistant PVC jacket.

Spec Sheet

Belden 3105a Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 22AWG
Conductor Material: Tinned Copper
Outside Diameter: .300in
Jacket Color: Black
Jacket Material: PVC (Polyvinyl Chloride)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size22 AWG
# of Conductors2 Conductors
# of Pairs1 Pair
O.D. (Inches)0.30
Ampacity2.7
ManufactureBelden
