$5.25 /ft.

In Stock

Belden 29502 12/3, plus Ground, Shielded VFD 1000V UL Flexible Motor Supply Cable

Min: 10 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 29502 12/3, plus Ground, Shielded VFD 1000V UL Flexible Motor Supply Cable

SKU
BEL29502-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description

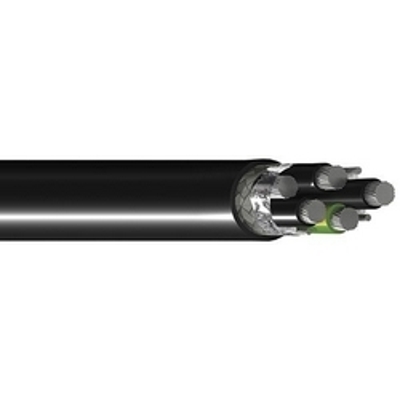

Belden 29502 4-cond. (3) stranded tinned copper circuit conductors plus (1)ground wire with PVC insulation, XLPE insulation, Overall Duofoil® (100% coverage) plus a tinned copper braid shield (85% coverage) , tinned copper drain wire, Sun- & oil-resistant PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 29502 Specifications
Conductor Size AWG:12 AWG
Ground Wire Size AWG:12 AWG
Conductors:3 + 1 Ground
Conductor Material:Tinned Copper
Outside Diameter:.630in
Jacket Color:Black
Jacket Material:PVC (Polyvinyl Chloride)
Weight:.30 lbs/ft



More Information
Wire Size12 AWG
O.D. (Inches)0.63
Ampacity30
ManufactureBelden
