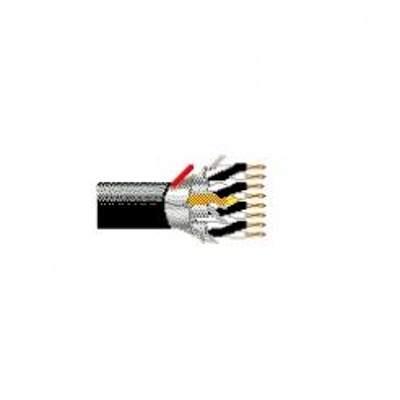

Belden 1475A 18 AWG 4-Pair Shielded Power-Limited Tray Cable, 300V

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 1475A 18 AWG 4-Pair + 1/C 22 AWG Shielded Power-Limited Tray Cable, 300V

SKU
BEL1475A-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
Belden 1475A 18 AWG pairs stranded (7x26) and 22 AWG (7x30) bare copper conductors, twisted pairs, individually shielded plus an overall Beldfoil (100% coverage), PVC insulation, PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 1475A Specifications
Conductor Size AWG: 18 AWG - 22 AWG
Conductor Material: Bare Copper
Outside Diameter: .468in
Jacket Color: Black
Jacket Material: PVC (Polyvinyl Chloride)



More Information
StockedYes
Wire Size18 AWG
# of Conductors8 Conductors
# of Pairs4 Pair
O.D. (Inches)0.468
Ampacity 3.5
ManufactureBelden
