$1.90 /ft.

In Stock

Belden 1076A Mulit-Conductor Power Limited Tray Cable, PLTC/ITC 300V. Cut by the foot.

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

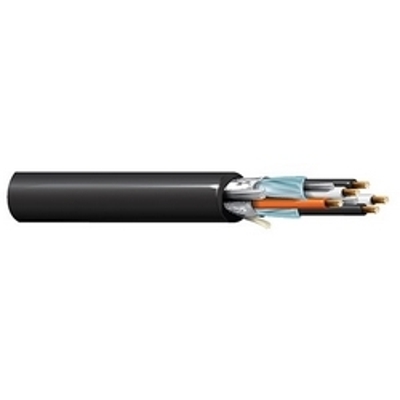

Belden 1076A 20 AWG 4 Pair Multi-Conductor Power Limited Tray Cable, PLTC, 300V

SKU
BEL1076A-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
Belden 1076A 20 AWG pairs stranded (7x28) and 22 AWG (7x30) bare copper conductors, Direct Burial, twisted pairs, PVC insulation, individually shielded plus an overall Beldfoil shield (100% coverage), PVC jacket

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 1076A Specifications
Conductor Size AWG:20AWG + 22AWG
Conductor Material:Bare Copper
Outside Diameter:.411in
Jacket Color:Black
Jacket Material:PVC (Polyvinyl Chloride)



More Information
Wire Size20 AWG
# of Conductors8 Conductors
# of Pairs4 Pair
O.D. (Inches)0.411
Ampacity4.2
Sunlight ResistantYes
ManufactureBelden
