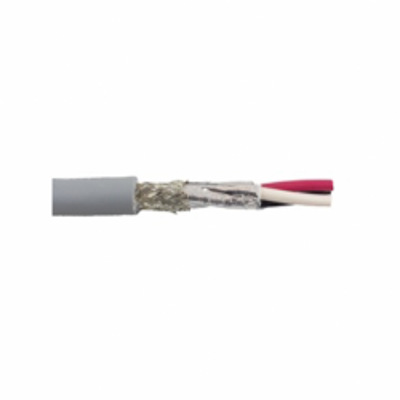

Alpha 79245, 22/3C Supra-Shield Foil/Braid Flexin.g Control Cable, EcoFlex, 600V

SKU AW79245
How will you purchase this wire?
2.060000 2.060000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 79245, 22/3C Supra-Shield Foil/Braid Flexin.g Control Cable, EcoFlex, 600V

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    3 Conductors

  • O.D. (Inches)

    0.216

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha Wire 79245, 22/3C EcoFlex® Supra-Shield Foil/Braid Flexing Control Cable 600V

Color:
Black, Red, White

Applications:
EcoFlex is the newest innovation in flexing control cables. By combining better performance and minimum environmental impact, EcoFlex uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter flexible control cable.

Features:
Recyclable mPPE jacket and insulation
-40°C to 105°C static, -5°C to 105°C flexing temperature range
RoHS and REACH Compliant
Suitable for use in NFPA 79 applications
Up to 8x Flexing Bend Radius, 6x Static

Compliances:
UL AWM/STYLE 21819
UL AWM/STYLE 21492
UL VW-1
CSA I /II A/B FT1
CE
RoHS
REACH
Suitable for use in NFPA 79 applications


Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:

Size: 22 AWG
Number of Conductors: 3
Conductor Strand: 19/34
Insulation Thickness: 0.010 inches
Jacket Thickness: 0.035 inches
Outside Diameter: 0.216 inches
Voltage: 600V
Jacket Color: Slate
