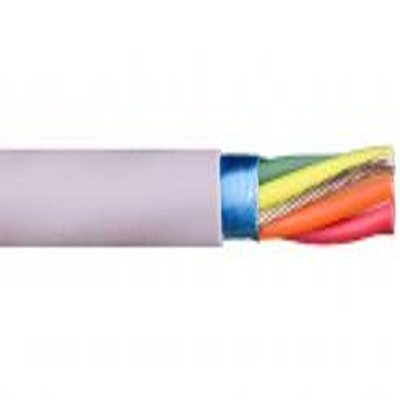

Alpha 78114, 26/4C Shielded Min.i Communication Cable, EcoCable

Alpha Wire 78114, 26/4C EcoCable® Mini Communication Shielded Cable

Color:
Gray

Applications:
Alpha’s EcoGen™ family of wire and cable combines better performance with minimum environmental impact. Each member of the EcoGen™ family derives its advantages from modified polyphenylene ether (mPPE) jacketing and insulation.

Features:
Up to 32% smaller than PVC
Up to 44% lighter than PVC
92% lower outgassing than PVC
100% recyclable mPPE insulation and jacketing
Contains no halogens, phthalates, or heavy metals
Multiconductor or multipair
Foil Shielded

Compliances:
UL AWM 21460
UL VW-1
CSA I A/B FT1
CE
RoHS
REACH
WEEE
Suitable for use in NFPA 79 applications
ISO 10993-5

Spec Sheet:

View Spec Sheet for Complete Details (PDF)

Specifications:

Size: 26 AWG
Number of Conductors: 4
Conductor Strand: 19/38
Insulation Thickness: 0.007 inches
Jacket Thickness: 0.015 inches
Outside Diameter: 0.012 inches
Voltage: 300V
