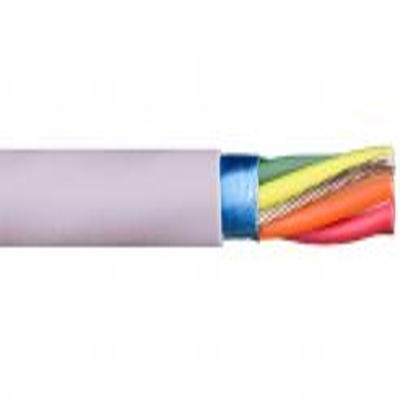

Alpha Wire 78006, 28/6C EcoCable Mini Communication Multiconductor Unshielded Cable
Product Details
Learn everything you want to know about this product to make an informed purchaseAlpha Wire 78006, 28/6C EcoCable® Mini Communication Unshielded Cable
Color:
Gray
Applications:
Alpha’s EcoGen™ family of wire and cable combines better performance with minimum environmental impact. Each member of the EcoGen™ family derives its advantages from modified polyphenylene ether (mPPE) jacketing and insulation.
Features:
Up to 32% smaller than PVC
Up to 44% lighter than PVC
92% lower outgassing than PVC
100% recyclable mPPE insulation and jacketing
Contains no halogens, phthalates, or heavy metals
Multiconductor or multipair
Unshielded
Compliances:
UL AWM 21460
UL VW-1
CSA I A/B FT1
CE
RoHS
REACH
WEEE
Suitable for use in NFPA 79 applications
ISO 10993-5
Spec Sheet:
View Spec Sheet for Complete Details (PDF)
Specifications:
Size: 28 AWG
Number of Conductors: 6
Conductor Strand: 19/40
Insulation Thickness: 0.007 inches
Jacket Thickness: 0.015 inches
Outside Diameter: 0.124 inches
Voltage: 300V
Stocked | Yes |
---|---|
Wire Size | 28 AWG |
# of Conductors | 6 Conductors |
O.D. (Inches) | 0.124 in. |
