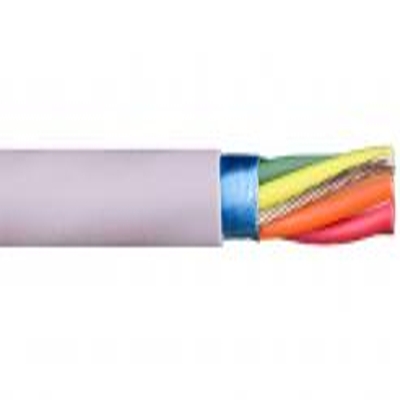

Alpha Wire 78004, 28/4C EcoCable Mini Communication Multiconductor Unshielded Cable

Min: 50 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Alpha 78004, 28/4C Unshielded Mini Communication Cable, EcoCable

SKU
AW78004-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Alpha Wire 78004, 28/4C EcoCable® Mini Communication Unshielded Cable

Color:
Gray

Applications:
Alpha’s EcoGen™ family of wire and cable combines better performance with minimum environmental impact. Each member of the EcoGen™ family derives its advantages from modified polyphenylene ether (mPPE) jacketing and insulation.

Features:
Up to 32% smaller than PVC
Up to 44% lighter than PVC
92% lower outgassing than PVC
100% recyclable mPPE insulation and jacketing
Contains no halogens, phthalates, or heavy metals
Multiconductor or multipair
Unshielded

Compliances:
UL AWM 21460
UL VW-1
CSA I A/B FT1
CE
RoHS
REACH
WEEE
Suitable for use in NFPA 79 applications
ISO 10993-5

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:

Size: 28 AWG
Number of Conductors: 4
Conductor Strand: 19/40
Insulation Thickness: 0.007 inches
Jacket Thickness: 0.015 inches
Outside Diameter: 0.107 inches
Voltage: 300V



More Information
Wire Size28 AWG
# of Conductors4 Conductors
O.D. (Inches)0.107 in.
