Alpha 77207, 20/4C Recyclable Control Cable, SupraShield, EcoCable, Halogen Free, 600V

Min: 100 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Alpha 77207, 20/4C Recyclable Control Cable, SupraShield, EcoCable, Halogen Free, 600V

SKU
AW77207-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

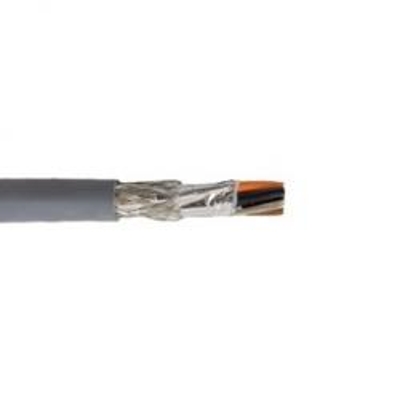

Alpha Wire 77207, 20 AWG 4 Conductor, Recyclable Control Cable, SupraShield (Premium Foil/Braid) EcoCable® Halogen Free, 600V

Color:
Black, Brown, Red, Orange

Applications:
EcoCable is the next generation of control cables. By combining better performance and minimum environmental impact, EcoCable uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter control cable.

Features:
Up to 47% smaller than PVC
Up to 65% lighter than PVC
Up to 87% lower outgassing
Zero Halogen
Capable of handling extreme temperatures
100% recyclable


Compliances:

UL AWM/STYLE 11231
UL AWM/STYLE 21915 Horizontal Flame
CSA AWM I/II A/B FT2
CE compliant
RoHS
REACH

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:

Size: 20 AWG
Number of Conductors: 4
Conductor Strand: 7/28
Insulation Thickness: 0.010 inches
Outside Diameter: 0.237 inches
Voltage: 600V
Jacket Color: Slate



More Information
StockedYes
Wire Size20 AWG
# of Conductors4 Conductors
O.D. (Inches)0.237 in.
