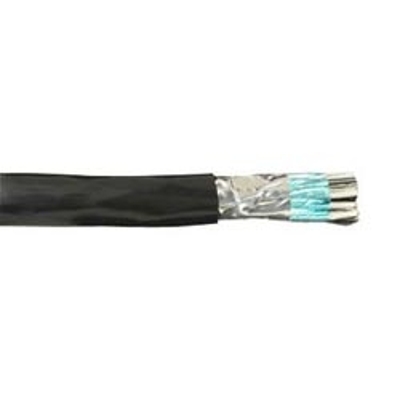

Alpha 3304, 28/4C Communication and Control Cable, Braid Shield, 600V

SKU AW3304

$

8.490000

8.490000

/ft
How will you purchase this wire?
8.490000 8.490000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 3304, 28/4C Communication and Control Cable, Braid Shield, 600V

Color Length (ft.) Price
N/A

Length (ft.)

$8.49
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$4,245.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    28 AWG

  • # of Conductors

    4 Conductors

  • O.D. (Inches)

    0.134 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 3304, 28 AWG 4 Conductor, Communication and Control Cable, Braid Shield, 600V

Color Code:
Black, White, Red, Green

Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Features:
Stranded tinned copper conductors
PVC insulation
Clear polyester wrap
Tinned copper braid shield, 90% coverage
Slate PVC jacket

Compliances:
CA Prop 65
Reach
MIL-DTL-16878/1 (Type B)


Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)


Specifications:
Size: 28 AWG
Number of Conductors: 4
Conductor Strand: 7/36
Outside Diameter: 0.134 inches
Insulation Thickness: 0.010 inches
Weight: 0.017 lbs/ft
Voltage: 600 V



See Less
