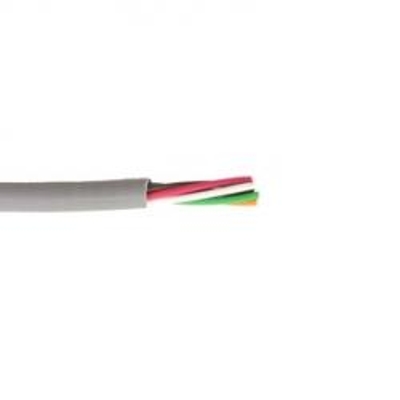

Alpha 1896/4L, 20 AWG 4 Conductor, LSZH Communication and Control Cable, Unshielded, 300V

Alpha 1896/4L, 20 AWG 4, LSZH, Conductor Communication and Control Cable, Unshielded, 300V

Jacket Color:
Slate


Color Coding:
Black, Red, White, Green


Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Features:
LSZH materials for low-smoke properties and reduced toxicity
Tinned copper conductors resist corrosion
Stranded conductors for installation flexibility
Multiconductor and multipair configurations
Unshielded versions for smallest diameter
Color-coded conductor insulation for easy identification


Compliances:
CSA CMG
CSA FT4
UL CMG
Reach

Specifications:
Size: 20 AWG
Number of Conductors: 4
Conductor Strand: 7/28
Jacket Thickness: 0.025 inches
Outside Diameter: 0.219 inches
Weight: .028 lbs per ft
Voltage: 300V

Spec Sheet:

View Spec Sheet for Complete Details
