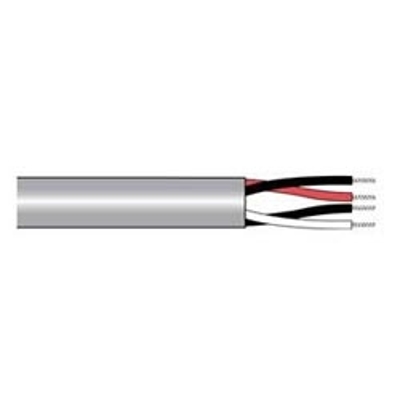

Alpha 1136C , 18 AWG 6 Pair Communication & Control Cable, Unshielded, 300V

SKU AW1136C
How will you purchase this wire?
0.220000 0.220000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Alpha 1136C , 18 AWG 6 Pair Communication & Control Cable, Unshielded, 300V

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    12 Conductors

  • # of Pairs

    6 Pair

  • O.D. (Inches)

    0.484 in.

  • Shielded

    No

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Alpha 1136C, 18 AWG 6 Pair Communication & Control Cable, Unshielded, 300V

Jacket Color:
Gray

Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Features:
Stranded tinned copper conductors
PVC insulation

Compliances:
CSA CMG
CSA FT4
UL 2464
UL CM
UL VW-1


Specifications:

Size: 18 AWG
Number of Conductors: 6 Pair
Conductor Strand: 16/30
Jacket Thickness: 0.045 inches
Outside Diameter: 0.484 inches
Voltage: 300V

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details
