    Belden 1694A RG-6/U 18 AWG Solid Coaxial Cable 75 OHM

    SKU
    BEL1694A

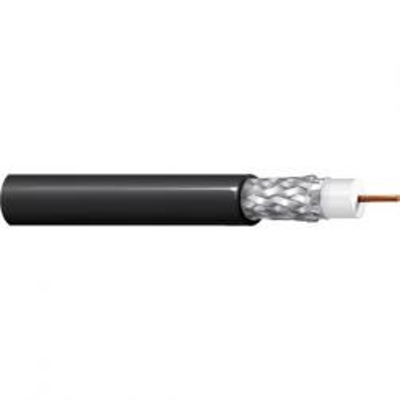

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 1694A - RG-6/U Type, 18 AWG solid .040" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (95% coverage), Outdoor Rated only in Black, PVC jacket.

    Spec Sheet

    Belden 1694A Spec SheetView Spec Sheet for Complete Details

    Belden 1694A - Specifications
    Size:                                             18 AWG
    Conductors:1
    Conductor Material:                     BC - Bare Copper
    Outside Diameter:.274 inches
    Impedance:75 OHM
    Jacket Color:Multiple Colors
    Jacket Material:PVC (Polyvinyl Chloride)
    Shield Type:Foil + TC Braid 95%
    More Information
    Wire Size18 AWG
    O.D. (Inches)0.274
    ManufactureBelden
