$0.85 /ft.

In Stock

XLP/USE-2 or RHW-2 or RHH 90°C - 600 Volt Stranded Building Wire. Cut to length - sold by the Foot.

Min: 30 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

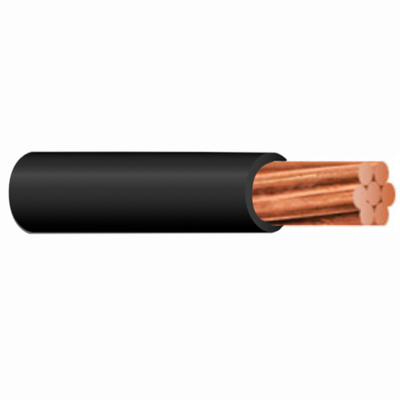

8 AWG XLP/USE-2/RHH/RHW-2 Building Wire

SKU
XLU8-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

XLP/USE-2 or RHW-2 or RHH 90°C - 600 Volt Stranded Building Wire. Cut to length - sold by the Foot.

Description:
Single copper conductor, stranded, insulated with moisture and heat resistant, chemically cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications.available.

Applications:
Types USE-2, RHH/RHW-2 are suitable for use in general purpose wiring applications and may be installed in raceway, conduit, direct burial and aerial installations where a cable having superior flame retardance is required.

Features:
CT use 1/0 and larger Gasoline and Oil resistant Direct Burial/Sunlight resistant.
Temperature Rating -40°C TO 90°C

Standards:
ASTM B3, B8 and B787
UL 44 and UL 854, ICEA S-95-658/NEMA WC-70
C(UL) US RW90 1kV:CSA/UL Listed
Federal spec. A-A-59544
Suitable for use in 105° C Dry System
RoHS Compliant

Specifications*:

Size: 8 AWG
Number of Strands: 7
Insulation Thickness (Conductor): 0.060 inches
Outside Diameter: 0.266 inches
Weight: 0.07 lbs per ft
Allowable Ampacity: 55 Amps at 90°C Wet/Dry

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeXLP/USE-2 or RHH/RHW-2
Wire Size8 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or SolidStranded
O.D. (Inches)0.266
Ampacity55
Voltage600V
Temp. Rating90°C
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
Location UseWet, Dry
Indoor/Outdoor UseIndoor, Outdoor
StandardsUL Listed, c(UL) Listed, RoHS Compliant
FeaturesSunlight Resistant, Water Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant
