$0.69 /ft.

In Stock

Type MTW Wire, Bare Copper Stranding. Cut to length - sold by the Foot.

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

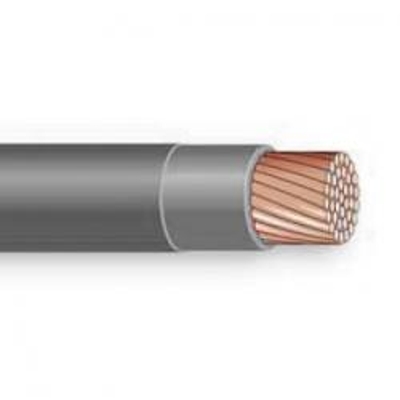

8 AWG, Type MTW/UL1283 Wire, 133 Strand

SKU
MTW8-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

***STRIPED COLORS ARE NON-STOCK ITEMS & MAY TAKE 2-3 BUSINESS DAYS TO SHIP***

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 2500'. Please call for longer put ups.

Applications:
Type conductors are primarily used in control cabinets, in machine tool applications and appliance wiring applications. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Bare Copper Stranding:
E315270 8 AWG (UL) MTW OR THHW OR BC-5W2 OR AWM 1011/1015/1028/1230/1283/1344 600V OR 1032/10269 1000V, VW-1---240954 CSA TEW 600V OR AWM 1 A/B 105C 1000V FT-1---SAE J1128 TYPE GPT

Specifications*:

Size: 8 AWG
Number of Strands: 133
Temp: 105°C
Insulation Thickness: 0.045 inches
Outside Diameter: 0.255 inches

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeMTW - Machine Tool Wire
Wire Size8 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
O.D. (Inches)0.255
Insulation MaterialPVC - Polyvinyl Chloride
Direct BurialNo
