Type SXL Wire, Bare Copper Stranding. 250', 500 or 1000' Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft
250 ft.
500 ft.
1000 ft.
Add a length

 Free Shipping on all orders over $1000

8 AWG SXL Automotive Primary Wire

SKU
SXL8

Product Details

Learn everything you want to know about this product to make an informed purchase

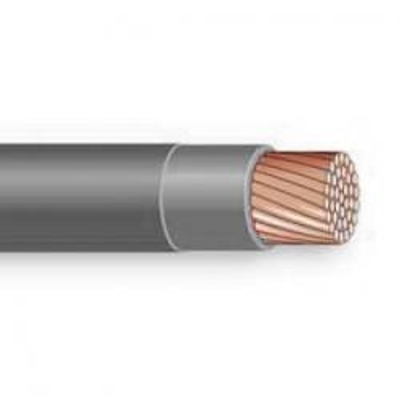

8 AWG SXL Automotive Primary Wire, 50V, 250ft 500ft or 1000ft Spool.

Applications:
Type SXL (special purpose cross-linked) XLPE automotive primary wire is for use in engine compartments where higher heat resistance is required according to SAE J1128.

Specifications*:

Size: 8 AWG
Number of Strands: 19/21
Insulation: Cross-Linked Polyethylene
Temp: -51°C to 125°C
Voltage Rating: 50V
Insulation Thickness: 0.043 inches
Outside Diameter: 0.227 inches
Ford Spec: M1L-85A
Chrysler Spec: MS-5919
SAE Spec: SAE J1128

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size8 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or SolidStranded
Number of Strands19
O.D. (Inches)0.227
Temp. Rating-51°C ~ 125°C
Insulation MaterialXLPE - Cross-linked Polyethylene
StandardsSAE J1128
