In Stock

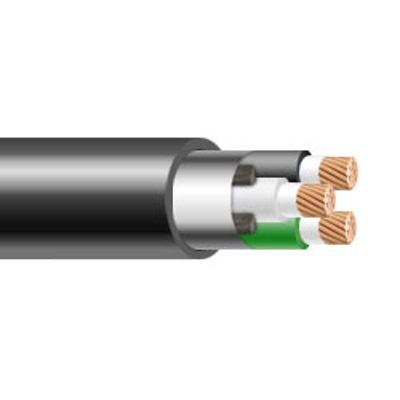

8/3 SOOW Portable Cord 600V UL/CSA
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10 ft. to maximum 250 ft. Please call for longer put ups.
Color:
Black
Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery
Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. Water Resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC
Standards:
UL Flexible Cord - UL 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant
Construction:
Conductors:
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.
Specifications*:
Size: 8 AWG
Number of Conductors: 3
Conductor Strand: 133/29
Insulation Thickness: 0.060 inches
Outside Diameter: 0.840 inches
Weight: 0.525 lbs per ft
Current Amps: 40
Color Code:
3 Conductors – Black, White, Green
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Cable Type | SOOW - 600V |
Wire Size | 8 AWG |
# of Conductors | 3 Conductors |
Conductor Material | Bare Copper |
Stranded or Solid | Stranded |
O.D. (Inches) | 0.84 |
Ampacity | 40 |
Temp. Rating | -40°C ~ 90°C |
Insulation Material | EPDM Rubber |
Jacket Material | CPE - Chlorinated Polyethylene |
Jacket Color | Black |
Flexibility | High Flexibility |
Indoor/Outdoor Use | Indoor, Outdoor |
Shielded | No |
Standards | UL Listed, CSA Certified, RoHS Compliant, MSHA Approved |
Features | Weather Resistant, Water Resistant, Oil Resistant |
Color Code | Black, White, Green |
