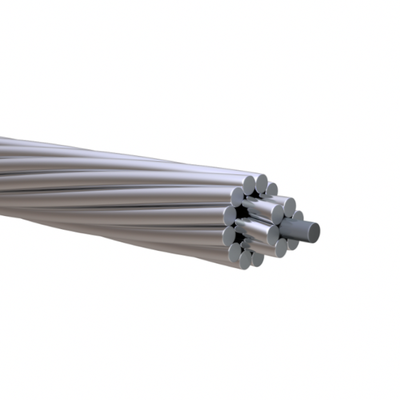

795 Drake ACSR Aluminum Conductor Steel Reinforced

Min: 25 ft., Max: 85000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

795 Drake ACSR Aluminum Conductor Steel Reinforced

SKU
ACSR795-DRA

Product Details

Learn everything you want to know about this product to make an informed purchase

795 Drake ACSR Aluminum Conductor Steel Reinforced

Application:

This wire is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

ACSR (aluminum conductor steel reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.

Applicable Standards:

- ASTM B-232: Concentric Lay Aluminum Conductors
- ASTM B-230: Aluminum 1350-H19 Wire for Electrical Purposes
- ASTM B-498: Zinc Coated (Galvanized) Steel Core Wire for ACSR

Construction:
A solid or concentric stranded central steel core is surrounded by one or more layers of concentric stranded aluminum alloy 1350. The wire is protected from corrosion with a zinc coating.

Specifications*:

Size: 795
Number of Strands (Alum/Steel): 26/7
Outside Diameter: 1.1080 inches
Weight: 1.094 lbs per ft
Rated Strength (lb/ft): 31500
Resistance OHMS/1000 ft. AC @75C: 0.0263
Ampacity: 907 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size795 MCM
# of Conductors1 Conductor
O.D. (Inches)1.108
Ampacity 907
