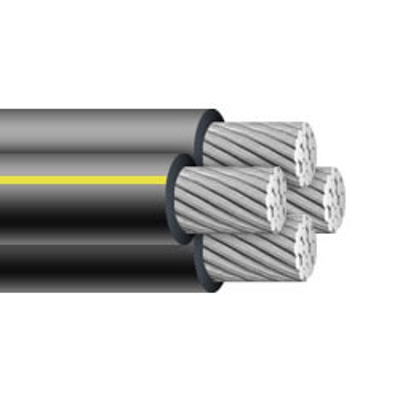

600V Underground Distribution Cable. Sold by the foot.
Product Details
Learn everything you want to know about this product to make an informed purchase750, 750, 750 & 500 Underground Secondary Distribution Cable
Color:
Black
Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. They are used in various underground applications in secondary distribution circuits.
Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.
Insulation:
Black cross-linked polyethylene (XLPE)
Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.
Applicable Standards:
- UL 854: Service Entrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables
750, 750, 750 & 500 Quadruplex URD Specifications*:
Phase Conductor-Size: 350 MCM
Conductor Strand: 61
Neutral Conductor-Size: 500 MCM
Conductor Strand: 37
Insulation Thickness: 0.095 inches
Outside Diameter: 2.850 inches
Allowable Ampacity-Direct Burial: 615 Amps
Allowable Ampacity-In Duct: 492 Amps
Weight: 3.147 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Wire Size | 750 MCM |
| # of Conductors | 4 Conductors |
| Conductor Material | Aluminum |
| Stranded or Solid | Stranded |
| O.D. (Inches) | 2.85 |
| Ampacity | 580 |
| Voltage | 600V |
| Insulation Material | XLPE - Cross-linked Polyethylene |
| Direct Burial | Yes |
| Sunlight Resistant | Yes |
