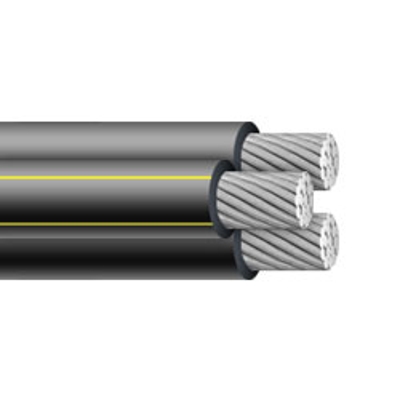

600V Underground Distribution Cable. Sold by the foot.
Product Details
Learn everything you want to know about this product to make an informed purchase750, 750, & 500 Underground Secondary Distribution Cable
Color:
Black.
Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. THey are used in various underground applications in secondary distribution circuits.
Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.
Insulation:
Black cross-linked polyethylene (XLPE)
Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.
Applicable Standards:
- UL 854: Service Entrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables
750, 750, & 500 Triplex URD Cable Specifications*:
Phase Conductor Size: 750MCM
Phase Conductor Insulation Thickness: 0.110 inches
Neutral Conductor Size: 500MCM
Neutral Conductor Insulation Thickness: 0.095 inches
Allowable Ampacity-Direct Burial: 615 Amps at 90°C
Allowable Ampacity-In-Duct: 525 Amps at 90°C
Outside Diameter: 2.04 inches
*Data provided on this page is subject to change based on different manufacturers variances.
| Wire Size | 750 MCM |
|---|---|
| # of Conductors | 3 Conductors |
| Conductor Material | Aluminum |
| Stranded or Solid | Stranded |
| O.D. (Inches) | 2.04 |
| Ampacity | 615 |
| Voltage | 600V |
| Insulation Material | XLPE - Cross-linked Polyethylene |
| Direct Burial | Yes |
| Sunlight Resistant | Yes |
