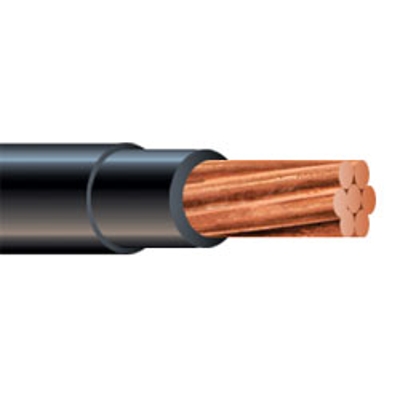

600 MCM THHN/THWN-2 Building Wire

600 MCM THHN/THWN-2 Building Wire
SKU THN600

$

25.080000

25.080000

/ft
How will you purchase this wire?
25.080000 25.080000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

.... .... .... .... .... .... .... ....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

600 MCM THHN/THWN-2 Building Wire

Color Length (ft.) Price
Black

Length (ft.)

$25.08
add Add a length
Brown

Length (ft.)

$25.08
add Add a length
Orange

Length (ft.)

$25.08
add Add a length
Yellow

Length (ft.)

$25.08
add Add a length
Gray

Length (ft.)

$25.08
add Add a length
White

Length (ft.)

$25.08
add Add a length
Red

Length (ft.)

$25.08
add Add a length
Blue

Length (ft.)

$25.08
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$12,540.00
Brown Length 500 ft.
$12,540.00
Orange Length 500 ft.
$12,540.00
Yellow Length 500 ft.
$12,540.00
Gray Length 500 ft.
$12,540.00
White Length 500 ft.
$12,540.00
Red Length 500 ft.
$12,540.00
Blue Length 500 ft.
$12,540.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    THHN/THWN-2

  • Wire Size

    600 MCM

  • # of Conductors

    1 Conductor

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • Number of Strands

    61

  • O.D. (Inches)

    1.051

  • Ampacity

    475

  • Voltage

    600V

  • Temp. Rating

    90°C

  • Insulation Material

    PVC - Polyvinyl Chloride

  • Jacket Material

    Nylon

  • Direct Burial

    No

  • Location Use

    Wet, Dry

  • Indoor/Outdoor Use

    Indoor, Outdoor

  • Standards

    UL Listed, CSA Certified

  • Features

    Water Resistant, Oil & Gas Resistant, Heat Resistant

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Also Known As:
Copper wire, THWN, building wire, hook up wire, conduit wire, bathtub wire, lighting wire, nylon copper wire, construction cable, etc...

Features:
Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.

Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.

Standards:
Underwriters Laboratories Standards UL-83, UL-1063, UL-758
AWM Spec 1316, 1317, 1318, 1319, 1320, 1321
ASTM Stranding Class B3, B8, B787
Federal Specification A-A-59544
Canadian Standards Association C22.2 No. 75
NEMA WC70/ICEA S-95-658
Institute of Electrical and Electronics Engineers

Construction:
Conductors:
Solid, uncoated copper conductors per ASTM-B3
Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
Insulation:
Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-8

Specifications*:

Size: 600 MCM
Number of Strands: 61
Cross Section Area (mm2): 304.00
PVC Insulation Thickness (Conductor): 1.778 mm / 0.070 inches
Nylon Jacket Thickness: 0.229 mm / 0.009 inches
Outside Diameter: 26.70 mm / 1.051 inches
Weight: 1.99 lbs per ft
Allowable Ampacity: 355 Amps at 60ºC / 420 Amps at 75ºC / 475 Amps at 90ºC

*Data provided on this page is subject to change based on different manufacturers variances.
