Free shipping on orders over $1000 View Details
$2.20 /ft.

In Stock

6 AWG Welding Cable Class M - 600V. Cut to length and sold by the Foot.

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

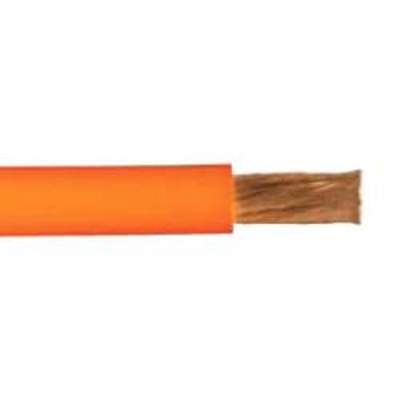

6 AWG Welding Cable Class M UL/CSA

SKU
WCM6-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

#6 Welding Cable Class M

Class M welding cable offers flexibility and durability superior to class K welding cable.

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Orange

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
temporary power, flexible cable, 600 volt cable, copper cable, welders cable, hurricane cable, etc.

Features:
Excellent flexibility to last longer in flex applications. Abrasion-resistant. Resists oils and solvents. Rated -50ºC for use in cold environments. Weather-resistant. Sunlight-resistant. Ozone-resistant. Safety-colored for high visibility. Assured longer service life, saving money in replacement costs, maintenance cost and downtime.

Jacket:
Temperature range: -50ºC to +90ºC

Standards:
UL Listed
CSA Certified
MSHA Approved
Meets UL Vertical Flame Test per UL 854
RoHS Compliant

Conductor:
Fully annealed stranded bare copper per ASTM B-172 Class M

Specifications*:

Size: 6 AWG
Conductor Strand: 660/34
Outside Diameter: 9.40 mm / 0.370 inches
Weight: 0.142 lbs per ft
Current Amps: 105 (For 600 Volt In-Line Applications)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size6 AWG
# of Conductors1 Conductor
O.D. (Inches)0.37
Ampacity 105
