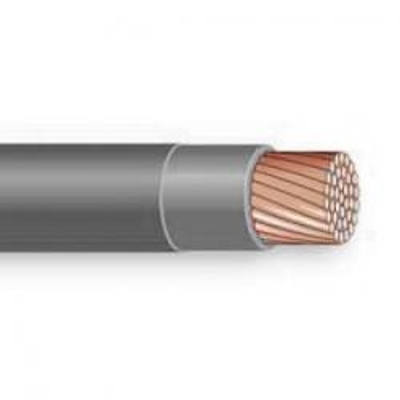

6 AWG, Type MTW/UL1283 Wire, 266 Strand

SKU MTW6

$

1.750000

1.750000

/ft
How will you purchase this wire?
1.750000 1.750000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

.... .... .... .... .... .... .... .... ....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

6 AWG, Type MTW/UL1283 Wire, 266 Strand

Color Length (ft.) Price
Black

Length (ft.)

$1.75
add Add a length
Green

Length (ft.)

$1.75
add Add a length
Red

Length (ft.)

$1.75
add Add a length
White (133 Strand)

Length (ft.)

$1.75
add Add a length
Green w/ Yellow Stripe

Length (ft.)

$1.75
add Add a length
Black (133 Strand)

Length (ft.)

$1.75
add Add a length
Red (133 Strand)

Length (ft.)

$1.75
add Add a length
White

Length (ft.)

$1.75
add Add a length
Yellow

Length (ft.)

$1.75
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$875.00
Green Length 500 ft.
$875.00
Red Length 500 ft.
$875.00
White (133 Strand) Length 500 ft.
$875.00
Black (133 Strand) Length 500 ft.
$875.00
Red (133 Strand) Length 500 ft.
$875.00
White Length 500 ft.
$875.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    MTW - Machine Tool Wire

  • Wire Size

    6 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Bare Copper

  • O.D. (Inches)

    0.33

  • Insulation Material

    PVC - Polyvinyl Chloride

  • Direct Burial

    No

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

***STRIPED COLORS ARE NON-STOCK ITEMS & MAY TAKE 2-3 BUSINESS DAYS TO SHIP***

1000 FT Min for Stripe

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Applications:
Type conductors are primarily used in control cabinets, in machine tool applications and appliance wiring applications. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Bare Copper Stranding:
E315270 6 AWG (UL) MTW OR THHW OR BC-5W2 OR AWM 1232/1283/1015/1346 600V OR 1032/10269 1000V, VW-1---240954 CSA TEW 600V OR AWM 1 A/B 105C 1000V FT-1---SAE J1127 TYPE SGT

Specifications*:

Size: 6 AWG
Number of Strands: 266
Temp: 105°C
Insulation Thickness: 0.060 inches
Outside Diameter: 0.330 inches

*Data provided on this page is subject to change based on different manufacturers variances.
