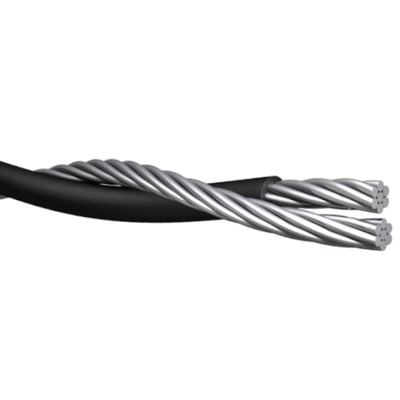

#6-6 Shepherd Aluminum Duplex Overhead Service Drop Cable

SKU OHC66

$

0.940000

0.940000

/ft
How will you purchase this wire?
0.940000 0.940000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

#6-6 Shepherd Aluminum Duplex Overhead Service Drop Cable

Color Length (ft.) Price
N/A

Length (ft.)

$0.94
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$470.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    Overhead Service Drop

  • Wire Size

    6 AWG

  • # of Conductors

    2 Conductors

  • Conductor Material

    Aluminum

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    0.48

  • Ampacity

    85

  • Voltage

    600V

  • Insulation Material

    XLPE - Cross-linked Polyethylene

  • Sunlight Resistant

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - Sold by the foot. Enter the desired footage in the QTY box.

Color:
Black.

Description:
Aluminum Duplex Overhead cable is designed for use to supply 120 volt aerial service for temporary service at
construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.

Conductor:
Aluminum Duplex Overhead cable has a concentric strand or compressed 1350-H19 series aluminum series aluminum conductor.

Messenger:
Aluminum Duplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:
Aluminum Duplex Overhead cable has a black cross linked polyethylene (XLP) insulation.

Applicable Standards:
ASTM B-230
ASTM B-231
ASTM B-232
ASTM B-399
ICEA S - 76 - 474

Specifications*:

Phase Conductor-Size: 6 AWG
Conductor Strand: 7
Insulation Thickness: 0.045 inches
Neutral Messenger Conductor-Size: 6 AWG
Conductor Strand: 6/1
Outside Diameter: .48 inches
Allowable Ampacity (XLP): 85 Amps
Weight: 0.075 lbs per ft

*All values are nominal and subject to correction. Ampacity 90°C conductor temperatures, 20°C ambient temperature. RHO 90. 100% load factor for three conductor triplex with neutral carrying only unbalanced load. All yellow extruded stripe cable is XLP insulation. UL Standard 854 available upon request. Ampacity not for NEC applications.
