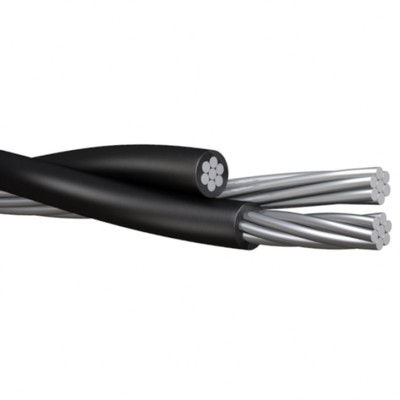

#6-6-6 Voluta Aluminum Triplex Overhead Service Drop Cable

SKU OHC666

$

1.470000

1.470000

/ft
How will you purchase this wire?
1.470000 1.470000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

#6-6-6 Voluta Aluminum Triplex Overhead Service Drop Cable

Color Length (ft.) Price
N/A

Length (ft.)

$1.47
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$735.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    Overhead Service Drop

  • Wire Size

    6 AWG

  • # of Conductors

    3 Conductors

  • Conductor Material

    Aluminum

  • Stranded or Solid

    Stranded

  • Ampacity

    85

  • Voltage

    600V

  • Insulation Material

    XLPE - Cross-linked Polyethylene

  • Sunlight Resistant

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Color:
Black

Description:
Aluminum Triplex Overhead cable is designed for use to supply power from utility lines to the consumer weather head. For service at 600 volts or lower (phase to phase) at a conductor temperature of 75°C maximum

Conductor:
Aluminum Triplex Overhead cable has concentric strand or compressed 1350-H19 series aluminum conductor.

Insulation:
Aluminum Triplex Overhead cable has a black cross linked polyethylene (XLP) insulation.

Messenger:
Aluminum Triplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of
AAC or 6201 alloy.

Applicable Standards:
ASTM B-230
ASTM B-231
ASTM B-232
ASTM B-399
ICEA S-76 - 474

Specifications*:

Phase Conductor-Size: 6 AWG
Conductor Strand: 7
Insulation Thickness: 0.050 inches
Neutral Conductor Size: 6 AWG
Conductor Strand: 7
Allowable Ampacity: 85 Amps
Weight: 0.118 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
