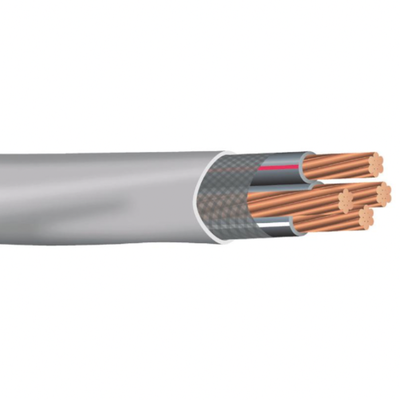

6-6-6-6 Copper SER Service Entrance Cable. Cut by the foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'.
Applications:
Type SE, Style SER Service Entrance may be used as service-entrance conductors and in other applications where SE cables are permitted when installed as specified by NEC® dry locations at temperatures up to 90°C.
Conductor:
Stranded conductors: Uncoated copper per ASTM-B3, ASTM-B8, and ASTM-B787
Phase Conductor:
Type THHN conductors Black PVC (polyvinyl chloride), rated to 90°C in wet or dry locations Jacketed with black nylon (polyamide) One phase conductor has a red stripe on its insulation surface for easy polarity identification.
Neutral Conductor:
White PVC (polyvinyl chloride), rated 90°C Jacketed with white nylon (polyamide)
Equipment Ground Conductor:
Bare stranded copper conductor
Jacket:
Gray, sunlight-resistant PVC (polyvinyl chloride) jacket over the complete assembly
Standards:
UL 83 (insulated conductors)
UL 854 Service Entrance Cables, File No. 11098
ASTM-B3
ASTM-B8
ASTM-B787
Federal Specification A-A-59544
NFPA70: National Electrical Code
Specifications*:
Insulated Conductor Size: 6 AWG
Bare Ground Size: 6 AWG (7)
Outside Diameter: 0.66 inches
Ampacity amps 75 @ 90°C
Net Weight: .411 lbs/ft
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Cable Type | Service Entrance Cable |
Wire Size | 6 AWG |
# of Conductors | 3 Conductors w/ Ground |
Conductor Material | Bare Copper |
Stranded or Solid | Stranded |
O.D. (Inches) | 0.66 |
Ampacity | 75 |
Voltage | 600V |
Temp. Rating | 90°C |
Insulation Material | PVC - Polyvinyl Chloride |
Jacket Material | PVC - Polyvinyl Chloride |
Jacket Color | Gray |
Direct Burial | No |
Sunlight Resistant | Yes |
Location Use | Wet, Dry |
Indoor/Outdoor Use | Indoor, Outdoor |
Standards | UL Listed |
