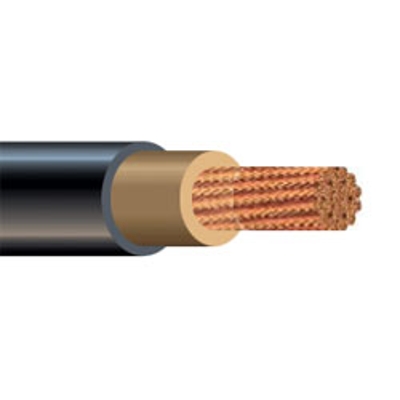

500 MCM 1C Type W Portable Power Cable
Product Details
Learn everything you want to know about this product to make an informed purchase2000V, 90°C (-40°C), Oil and Sunlight Resistant.
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
Color:
Black
Applications:
Type W Portable Power Cable is suitable for use in industrial and light-to-medium mining applications, heavy-duty service, temporary power supply cables, motor, battery and generator leads. Also suitable for mobile and portable electrical equipment.
Compliances:
- UL Listed - Type W per UL 1650
- Conductors are manufactured in accordance with ASTM and B-172
- Made in accordance with ICEA S-75-381
- NEMA WC-58 - Portable and Power Feeder Cables for Use in Mines and Similar Locations
- MSHA accepted, P-136-135, LR65300
- UL Listed as Type RHH or RHW-2
- CSA or c(UL) Certified as applicable
- RoHS Compliant
- Meets FT-5 Flame Test
Conductor:
Fully annealed stranded bare copper per ASTM B-172.
Insulation:
EP rubber insulation
Jacket:
CPE rubber jacket. Jackets are reinforced by a braid or serve of synthetic material.
Specifications*:
Size: 500 MCM
Number of Conductors: 1
Conductor Strand: 1235
Nominal Insulation Thickness: 0.095 inches / 2.41 mm
Outside Diameter: 1.310 inches / 33.28 mm
Current AMPS: 700
Net Weight: 2.048 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 500 MCM |
# of Conductors | 1 Conductor |
O.D. (Inches) | 1.31 |
Ampacity | 700 |
Jacket Color | Black |
