48-Port CAT5E Patch Panel

SKU Patch48C5E

dollar

$67.68
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

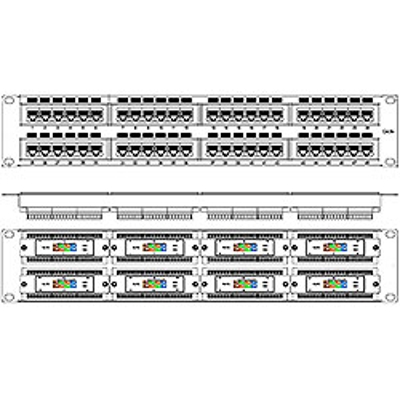

Cat5e 48 Ports Patch Panel

Electrical:
Voltage Rating: 125 VAC RMS
Current Rating: 1.5 AMP
Contact Resistance: 100 milliohms (max)
Insulation Resistance: 1000 megohms min @ 500 VDC
Dielectric Strength: 750 VAC RMS 60Hz, 1 min

Environmental:
Storage: -40 - +85 degree / C
Operation: 0 - +70 degree / C
Conform to TIA/EIA 568A Category 5e
Mates with modular plug conforming to FCC Part 6B Subpart F

Mechanical:
Housing Material: PBT+15%GF UL 84V-O
Panel Frame: Carbon Steel, Powder Coating in Black Color
IDC Material: PC UL 94V-O
Contact: Phosphor Bronze with Nickel Plating

See Less
