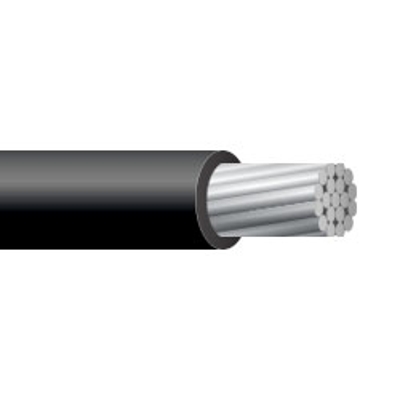

400 MCM XHHW-2 Aluminum Building Wire
In Stock
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire
Product Details
Learn everything you want to know about this product to make an informed purchaseAlso available by the spool. Please click here for pricing.
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire
Application:
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.
Applicable Standards:
- UL 44
- ASTM standards B800 and B801
Conductor:
Compact stranded aluminum alloy 8000 series per ASTM B-801
Insulation:
UL recognized cross-linked polyethylene
Specifications*:
Size: 400 MCM
Number of Strands: 35
Insulation Thickness: 0.065 inches
Outside Diameter: 0.789 inches
Weight: 0.439 lbs per ft
Ampacity: 305 Amps at 90°C
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Cable Type | XHHW-2 |
| Type of Structure | Residential, Commercial, Industrial |
| Wire Size | 400 MCM |
| # of Conductors | 1 Conductor |
| O.D. (Inches) | 0.789 |
| Ampacity | 305 |
| Voltage | 600V |
| Temp. Rating | 90°C |
| Insulation Material | XLPE - Cross-linked Polyethylene |
| Direct Burial | No |
| Sunlight Resistant | Yes |
| Location Use | Wet, Dry |
| Indoor/Outdoor Use | Indoor, Outdoor |
| Applications | General purpose wiring for lighting & power |
| Standards | UL Listed, c(UL) Listed, RoHS Compliant |
| Features | Water Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant |
