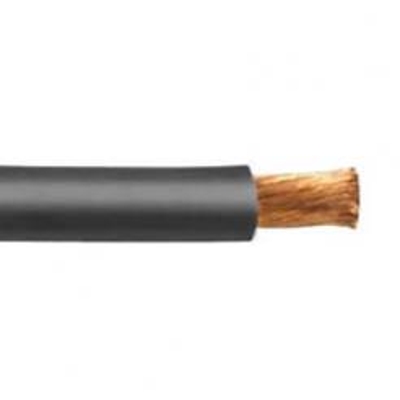

4 Gauge Battery Cable. Cut to length - sold by the Foot.
4 Gauge Battery Cable, Type SGT
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.
Type: SGT SAE J1127 Battery Cable
Black & Red
Used for connecting battery to switch, starter, and ground. Tough, high temperature resistant PVC insulation is durable enough to handle heavy-duty automotive demands.
Highly Flexible Thermoplastic Polyvinyl Chloride
Polyvinyl Chloride (PVC)
Rated –40°C (–58°F) to 105°C (221°F)
Stranded Bare Copper
Also Known As:
Battery Cable, 4 Gauge Automotive Battery Wire, Type SGT SAE J1127-Battery Cable
Size: 4 AWG
Conductor Strand: 133
Outside Diameter: 0.356 inches
Voltage: 60V DC (25 V AC) or less
Weight: 0.150 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||4 AWG|
|# of Conductors||1 Conductor|
