Free shipping on orders over $1000 View Details
$6.18 /ft.

In Stock

4/4 SOOW Portable Cord 600V Non UL

Min: 10 ft., Max: 55000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

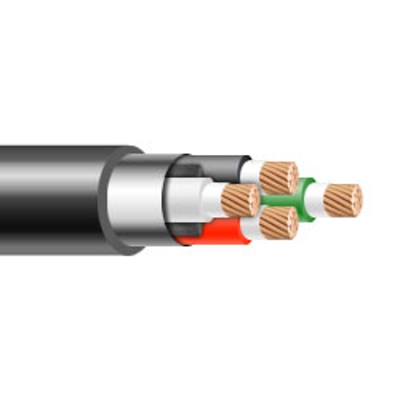

4/4 SOOW Portable Cord 600V Non UL

SKU
SOO4s4NU-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

4/4 SO Cord - SOOW

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 15 ft. to maximum 1000 ft. Please call for longer put ups.

Color:
Black

Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. Temperature range: -40ºC to +90ºC

Standards:
MSHA Approved
RoHS Compliant

Construction:
Conductors:
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.

4/4 SOOW Specifications*:

Size: 4 AWG
Number of Conductors: 4
Conductor Strand: 119/25
Insulation Thickness: 0.050 inches
Outside Diameter: 1.000 inches
Weight: 0.845 lbs per ft
Current Amps: 60

Color Code Chart:
SOOW color code

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeSOOW - 600V
Wire Size4 AWG
# of Conductors4 Conductors
Conductor MaterialBare Copper
Stranded or Solid Stranded
O.D. (Inches)1
Ampacity 60
Temp. Rating-40°C ~ 90°C
Insulation MaterialEPDM Rubber
Jacket MaterialCPE - Chlorinated Polyethylene
Jacket ColorBlack
FlexibilityHigh Flexibility
Indoor/Outdoor UseIndoor, Outdoor
ShieldedNo
StandardsRoHS Compliant, MSHA Approved
FeaturesWeather Resistant, Water Resistant, Oil Resistant
Color CodeBlack, White, Red, Green
