$1.01 /ft.

In Stock

4-4-4 Vassar Underground Distribution Cable. Sold by the foot.

Min: 20 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

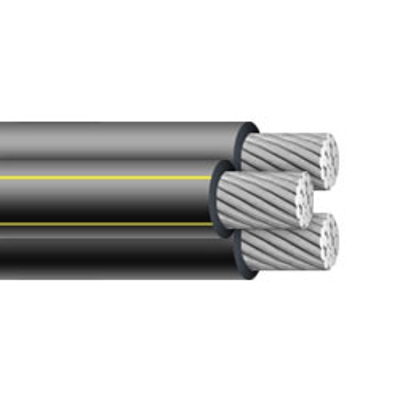

4-4-4 Vassar Triplex Underground Distribution Cable

SKU
UDC444-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Color:
Black.

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. THey are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
- UL 854: Service ENtrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

Specifications*:

Phase Conductor-Size: 4 AWG
Conductor Strand: 7
Neutral Conductor-Size: 4 AWG
Conductor Strand: 7
Insulation Thickness: 0.060 inches
Outside Diameter: 0.744 inches
Allowable Ampacity-Direct Burial: 123 Amps at 90°C
Allowable Ampacity-In-Duct: 90 Amps at 90°C
Weight: 0.191 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeURD
Wire Size4 AWG
# of Conductors3 Conductors
Conductor MaterialAluminum
Stranded or SolidStranded
O.D. (Inches)0.744
Ampacity123
Voltage600V
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
