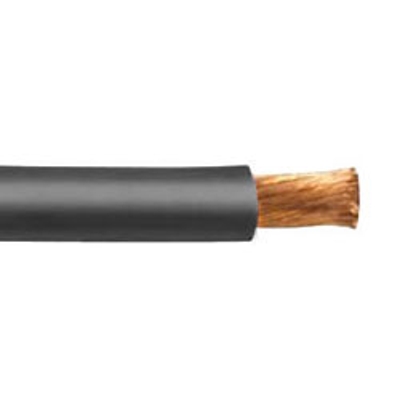

4/0 Flexible Welding Cable - 600V. Cut to length and sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchase4/0 Welding Cable Class K
Cut to length - Sold by the foot
Minimum 1' to maximum 5000'. Please call for longer put ups
Colors Available:
Black, Red, Blue & Green
Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.
Also Known As:
Battery Cable, 4/0 Welding Lead, Temporary Power Cable, 4/0 Flexible Cable, 600 Volt Cable, 4/0 Copper Cable, 4/0 Welders Lead, Hurricane Cable, etc.
Features:
Good flexibility. Abrasion-resistant. Good color retention.
Jacket:
Premium-grade 90ºC EPDM, black or red. Temperature range: -40ºC to +90ºC
Standards:
RoHS Compliant
Conductor:
Fully annealed stranded bare copper Class K
Specifications*:
Size: 4/0
Conductor Strand: 2054/30
Outside Diameter: 19.05 mm / 0.750 inches
Weight: 0.820 lbs per ft
Current Amps: 310 (For 600 Volt In-Line Applications)
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 4/0 AWG |
# of Conductors | 1 Conductor |
O.D. (Inches) | 0.75 |
Ampacity | 310 |
