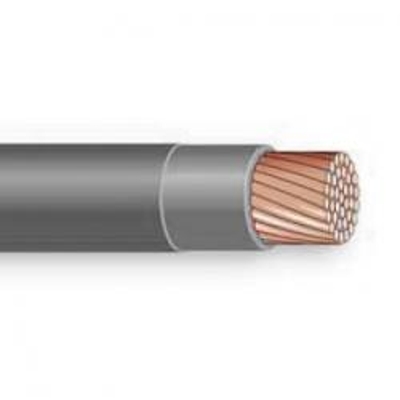

4/0 Type MTW/UL1284 Wire, 2109 Strand
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
Type conductors are primarily used in control cabinets, in machine tool applications and appliance wiring applications. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.
Bare Copper Stranding:
E315270 4/0 AWG (UL) MTW OR THHW OR BC-5W2 OR AWM 1011/1015/1232/1284/1338 600V OR 1032/10269 1000V, VW-1---240954 CSA TEW 600V OR AWM 1 A/B 105C 1000V FT-1---SAE J1127 TYPE SGT
Number of Strands: 2109
Insulation Thickness: 0.080 inches
Outside Diameter: 0.730 inches
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||MTW - Machine Tool Wire|
|Wire Size||4/0 AWG|
|# of Conductors||1 Conductor|
|Conductor Material||Bare Copper|
|Insulation Material||PVC - Polyvinyl Chloride|
