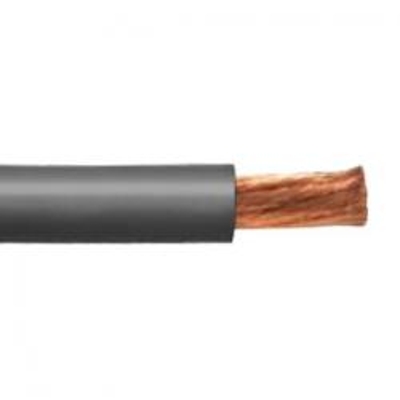

4/0 Stage Lighting Cable UL/CSA

SKU
SLC4s0-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 490'. Please call for longer put ups.

Color:
Black

Applications:
Portable power systems. Entertainment industry activities such as theater, television, night clubs, motion pictures, mobile communication vans, spotlights and sound systems. Other similar applications that would require temporary power.

Features:
Water-resistant. Sunlight-resistant. Designed to withstand severe environmental conditions. Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals. Meets or exceeds flame test requirements of MSHA, CSA and UL.

Jacket:
Temperature range: -50ºC to +105ºC

Standards:
UL Listed
CSA Certified
RoHS Compliant

Conductor:
Fully annealed stranded bare copper per ASTM B-172

Specifications*:

Size: 4/0
Conductor Strand: 2066/30
Outside Diameter: 19.81 mm / 0.780 inches
Weight: 0.820 lbs per ft

What is the ampacity of 4/0 Stage Lighting Cable?  405 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size4/0 AWG
# of Conductors1 Conductor
O.D. (Inches)0.78
Ampacity405
