4/0 Penguin ACSR Aluminum Conductor Steel Reinforced

Min: 100 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

4/0 Penguin ACSR Aluminum Conductor Steel Reinforced

SKU
ACSR4s0-PEN

Product Details

Learn everything you want to know about this product to make an informed purchase

4/0 Penguin ACSR Aluminum Conductor Steel Reinforced

Application:

This wire is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

ACSR (aluminum conductor steel reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.

Applicable Standards:

- ASTM B-232: Concentric Lay Aluminum Conductors
- ASTM B-230: Aluminum 1350-H19 Wire for Electrical Purposes
- ASTM B-498: Zinc Coated (Galvanized) Steel Core Wire for ACSR

Construction:

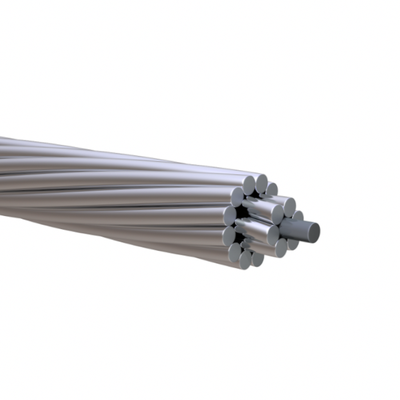

A solid or concentric stranded central steel core is surrounded by one or more layers of concentric stranded aluminum alloy 1350. The wire is protected from corrosion with a zinc coating.

Specifications*:

Size: 4/0
Number of Strands (Alum/Steel): 6/1
Outside Diameter: 0.5630 inches
Weight: 0.2911 lbs per ft
Rated Strength (lb/ft): 8350
Resistance OHMS/1000 ft. AC @75C: 0.1190
Ampacity: 357 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size4/0 AWG
# of Conductors1 Conductor
O.D. (Inches)0.563
Ampacity357
