4/0,4/0 & 4/0 Monmouth Underground Secondary Distribution Cable. Sold by the foot.

Min: 10 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

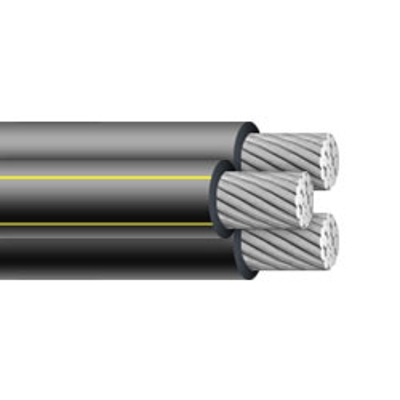

4/0,4/0 & 4/0 Monmouth Triplex Underground Secondary Distribution Cable

SKU
USD4s04s0-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Color:
Black.

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. They are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
- UL 854: Service ENtrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

Specifications*:

Phase Conductor Size: 4/0
Phase Conductor Insulation Thickness: 0.080 inches
Neutral Conductor Size: 4/0
Neutral Conductor Insulation Thickness: 0.080 inches
Outside Diameter: 1.457 inches
Weight: 0.828 lbs per ft
Allowable Ampacity-Direct Burial: 315 Amps
Allowable Ampacity-In Duct: 240 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size4/0 AWG
# of Conductors3 Conductors
Conductor MaterialAluminum
Stranded or SolidStranded
O.D. (Inches)1.457
Ampacity315
Voltage600V
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
