TelcoFlex® IV Central Office Power Wire and Cable Class I Flexible Strand With Braid. Cut to length - sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for different colors or longer put ups.
Applications:
TelcoFlex® IV Central Office Power Wire and Cable Class I Flexible Strand With Braid. The Cable has low-smoke, lead-free and silicone-free non-halogenated insulation. UL Central Office Power Cable 105ºC dry, 60ºC wet. UL Listed RHH/LS FT4 and VW-1, 90ºC dry, 60ºC wet, 600 volts. Sizes 1/0 and larger are UL, CT USE rated. CSA AWM I B 105ºC, 600 volts.
Specifications:
Meets or exceeds the following:
UL Listed RHH/LS
FT-4 Flame Test
VW-1
ASTM B-33
Physical and Electrical tests in accordance with UL Standard 44 Requirements
CSA AWM I B 105ºC
IEC 60674 and 60332
RoHS / Reach Compliant
Construction:

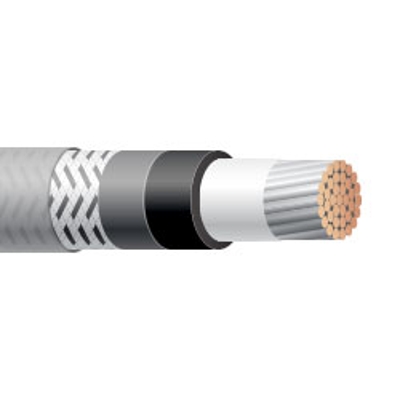

Southwire's TelcoFlex® IV cable is single conductor with a class l(modified) bunched (8 and 6 AWG) and rope-bunched (4 AWG and larger) stranded tinned copper conforming to ASTM B-33 and Underwriters' laboratories requirements. An opaque mylar tape shall be applied over the conductor to facilitate stripping. Insulation is 90ºC rated limited smoke, non-halogen, TelcoHyde™ 5221 conforming to Underwriters' Laboratories standard 44 and Telcordia Specification GR-347-CORE, also UL and CSA 105ºC AWM rated. The insulation has a limiting oxygen index of 35%.
Specifications*:
Size: 350 MCM
Conductor Strand: 888/.0201
Insulation Thickness: 0.095 inches
Outside Diameter: 1.000 inches
Weight: 1.373 lbs per ft
Max. D.C. Res. @ 20ºC: .0334
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 350 MCM |
# of Conductors | 1 Conductor |
O.D. (Inches) | 1 |
