$1,435.00 /sp.

In Stock

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft
1000 ft
Add a length

 Free Shipping on all orders over $1000

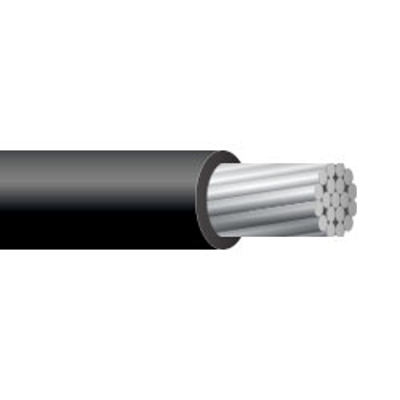

350 MCM Aluminum XLP/USE-2 Building Wire, 500ft or 1000ft Spool

SKU
XLPAL350

Product Details

Learn everything you want to know about this product to make an informed purchase

Please call 855-880-8010 or email here for shorter lengths

Approved for Direct Burial
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulation XLPE

Application:
USE-2 cables are primarily used for power distribution, in raceways in accordance with National Electrical Code, except that the cable is not rated for use in cable tray. USE-2 is approved for direct burial and for service entrance below ground. USE-2 cables may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for USE-2 cable is 600V

Applicable Standards:
USE-2 meets or exceeds the following standards
UL 44
Requirements of the National Electrical Code
ASTM standards B 800, B 801
Sunlight resistant

Conductor:
USE-2 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM

Insulation:
USE-2 has abrasion, heat and moisture resistant cross-linked polyethylene insulation XLPE

Specifications*:

Size: 350 MCM
Number of Strands: 35
Insulation Thickness: 0.095 inches
Outside Diameter: 0.809 inches
Weight: 0.435 lbs per ft
Ampacity: 260 Amps at 30°C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeXLP/USE-2 or RHH/RHW-2
Wire Size350 MCM
# of Conductors1 Conductor
Conductor MaterialAluminum
Stranded or SolidStranded
O.D. (Inches)0.809
Ampacity260
Voltage600V
Temp. Rating-40°C ~ 90°C
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
Location UseWet, Dry
Indoor/Outdoor UseIndoor, Outdoor
StandardsUL Listed, RoHS Compliant
