$11.00 /ft.

In Stock

Type MTW Wire, Bare Copper Stranding. Cut to length - sold by the Foot.

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

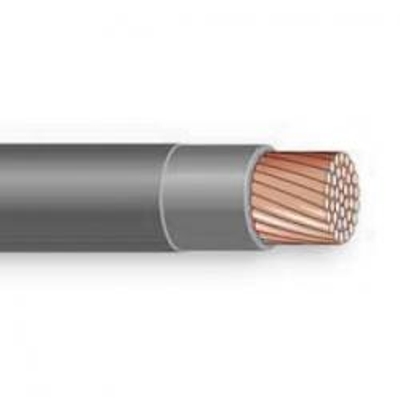

350 MCM, Type MTW/UL1284 Wire, 3458 Strand

SKU
MTW350-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 750'. Please call for longer put ups.

Color:
Black

Applications:
Type conductors are primarily used in control cabinets, in machine tool applications and appliance wiring applications. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Bare Copper Stranding:
E314968 350 MCM (UL) MTW OR THHW FOR CT USE OR AWM 1339/1284 600V OR 1032/10269 1000V VW-1 SUN RES---240954 CSA AWM I A/B 105C 600/1000V FT1

Specifications*:

Size: 350 MCM
Number of Strands: 3458
Temp: 105°C
Insulation Thickness: 0.100 inches
Outside Diameter: 0.950 inches

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeMTW - Machine Tool Wire
Wire Size350 MCM
# of Conductors1 Conductor
Conductor MaterialBare Copper
O.D. (Inches)0.95
Insulation MaterialPVC - Polyvinyl Chloride
Direct BurialNo
