600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire

Min: 10 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

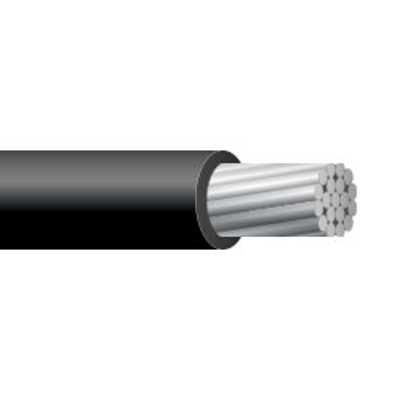

300 MCM XHHW-2 Aluminum Building Wire

SKU
XHWAL300-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Also available by the spool.  Please click here for pricing.

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire

Application:
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.

Applicable Standards:
- UL 44
- ASTM standards B800 and B801

Conductor:
Compact stranded aluminum alloy 8000 series per ASTM B-801

Insulation:
UL recognized cross-linked polyethylene

Specifications*:

Size: 300 MCM
Number of Strands: 35
Insulation Thickness: 0.065 inches
Outside Diameter: 0.700 inches
Weight: 0.337 lbs per ft
Ampacity: 255 Amps at 90°C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeXHHW-2
Type of StructureResidential, Commercial, Industrial
Wire Size300 MCM
# of Conductors1 Conductor
O.D. (Inches)0.7
Ampacity 255
Voltage600V
Temp. Rating90°C
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialNo
Sunlight ResistantYes
Location UseWet, Dry
Indoor/Outdoor UseIndoor, Outdoor
ApplicationsGeneral purpose wiring for lighting & power
StandardsUL Listed, c(UL) Listed, RoHS Compliant
FeaturesWater Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant
