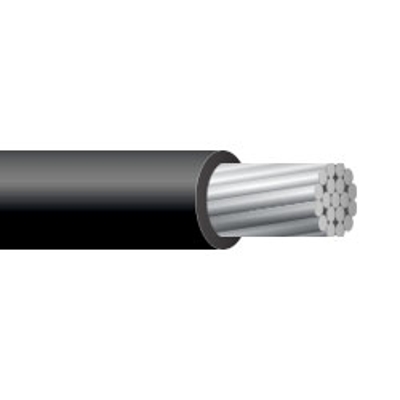

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire
Product Details
Learn everything you want to know about this product to make an informed purchaseCut by the foot.
Approved for Direct Burial
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulation XLPE
Application:
USE-2 cables are primarily used for power distribution, in raceways in accordance with National Electrical Code, except that the cable is not rated for use in cable tray. USE-2 is approved for direct burial and for service entrance below ground. USE-2 cables may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for USE-2 cable is 600V
Applicable Standards:
USE-2 meets or exceeds the following standards
UL 44
Requirements of the National Electrical Code
ASTM standards B 800, B 801
Sunlight resistant
Conductor:
USE-2 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM
USE-2 has abrasion, heat and moisture resistant cross-linked polyethylene insulation XLPE
Specifications*:
Size: 3/0 AWG
Number of Strands: 18
Insulation Thickness: 0.080 inches
Outside Diameter: 0.586 inches
Weight: 0.221 lbs per ft
Ampacity: 165 Amps at 30°C
*Data provided on this page is subject to change based on different manufacturers variances.
| Cable Type | XLP/USE-2 or RHH/RHW-2 |
|---|---|
| Wire Size | 3/0 AWG |
| # of Conductors | 1 Conductor |
| Conductor Material | Aluminum |
| Stranded or Solid | Stranded |
| O.D. (Inches) | 0.586 |
| Ampacity | 165 |
| Voltage | 600V |
| Temp. Rating | -40°C ~ 90°C |
| Insulation Material | XLPE - Cross-linked Polyethylene |
| Direct Burial | Yes |
| Sunlight Resistant | Yes |
| Location Use | Wet, Dry |
| Indoor/Outdoor Use | Indoor, Outdoor |
| Standards | UL Listed, RoHS Compliant |
| Features | Sunlight Resistant, Water Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant |
