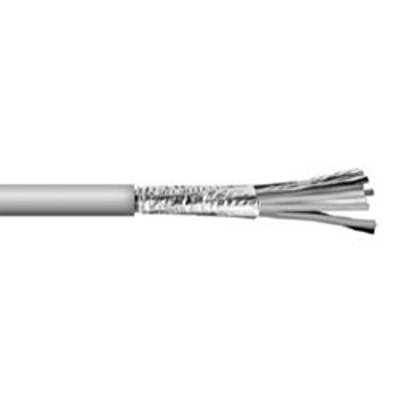

Belden 9545 equals General C0750A, UL 2464, NEC Type CMR (UL) c(UL) CSA CMG
Product Details
Learn everything you want to know about this product to make an informed purchaseBelden 9545 equals General C0750A, UL 2464, NEC Type CMR (UL) c(UL), CSA CMG
A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.
Color:
Gray
Applications:
Computer interconnections, Data transmission, Control circuits, Industrial equipment control, Suitable for EIA RS-232 applications, Suggested voltage rating: 300 volts
Compliances:
- NEC Article 800 Type CMR (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V)
- CSA CMG (CSA: 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMH Flame Test
Conductor:
Fully annealed, stranded tinned copper per ASTM B-33, twisted pairs
Insulation:
Premium-grade, color-coded S-R PVC per UL 1061
Shield:
100% aluminum/polyester, 25% overlap, foil facing out, Stranded tinned copper drain wire
Jacket:
PVC, gray
-20°C to +80°C
Specifications*:
Size: 24 AWG
Number of Conductors: 40
Conductor Stranding: 7/32
Nominal Insulation Thickness: 0.010 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.391 inches
Nomonal Cap. pF/ft: A-30.0, B-55.0
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 24 AWG |
# of Conductors | 40 Conductors |
O.D. (Inches) | 0.391 in. |
Alt to Belden # | 9545 |
Shielded | Yes |
Shield Type | Overall Foil Shield |
