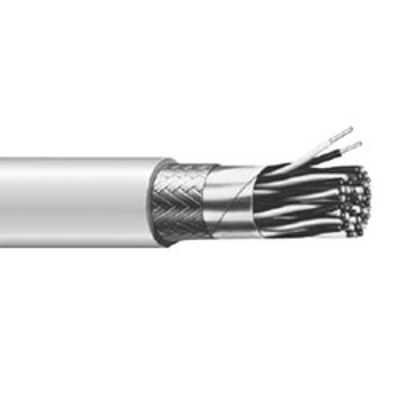

24 AWG, 12.5 Pair, Computer Cable, Foil/Braid Shield, 500ft Spool

SKU BELEQ8342

$

1.970000

1.970000

/ft
How will you purchase this wire?
1.970000 1.970000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

24 AWG, 12.5 Pair, Computer Cable, Foil/Braid Shield, 500ft Spool

Grouped product items
Color Length (ft.)
Gray Length 500 ft.
$985.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • # of Conductors

    25 Conductors

  • O.D. (Inches)

    0.405 in.

  • Alt to Belden #

    8342

  • Shielded

    Yes

  • Shield Type

    Foil + Braid(s)

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Belden 8342 Equivalent, UL 2464, NEC Type CMR (UL) c(UL), CSA CMG

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Computer interconnections, Data transmission, Control circuits, Industrial equipment control, Suitable for EIA RS-232 applications, Suggested voltage rating: 300 volts

Compliances:
- NEC Article 800 Type CMR (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V)
- CSA CMG (CSA: 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMH Flame Test

Conductor:
Fully annealed, stranded tinned copper per ASTM B-33, twisted pairs

Insulation:
Premium-grade, color-coded S-R PVC per UL 1061



Shield:
100% aluminum/polyester, 25% overlap, foil facing out, Stranded tinned copper drain wire

Jacket:
PVC, gray
-20°C to +80°C

Specifications*:

Size: 24 AWG
Number of Pairs: 12.5
Conductor Stranding: 7/32
Nominal Insulation Thickness: 0.011 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.405 inches
Nomonal Cap. pF/ft: * 30, ** 50

Nominal capacitance between conductors
Nominal capacitance conductor to conductor and shield

*Data provided on this page is subject to change based on different manufacturers variances.
