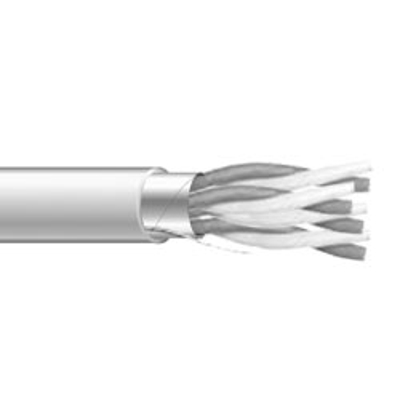

Learn everything you want to know about this product to make an informed purchaseBelden 9306 equals General C1671A, NEC Type CM (UL) c(UL) CSA CMG
A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.
Color:
Gray
Applications:
Audio systems, communication circuits, instrumentation and control use. Suggested voltage rating: 300 volts
Compliances:
- NEC Article 800 Type CM (UL: 75°C)
- UL Style 2835 (UL: 60°C, 30V)
- CSA CMG (CSA: 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMH Flame Test
Conductor:
Fully annealed, solid tinned copper per ASTM B-33, twisted pairs
Insulation:
Premium-grade, color-coded S-R PVC
Shield:
100% aluminum/polyester, 25% overlap, foil facing out, Stranded tinned copper drain wire
Jacket:
PVC, gray
-20°C to +75°C
Specifications*:
Size: 22 AWG
Number of Pairs: 6
Conductor Stranding: Solid
Nominal Insulation Thickness: 0.010 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.292 inches
Nomonal Cap. pF/ft: A-32.0, B-57.0
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 22 AWG |
# of Conductors | 12 Conductors |
O.D. (Inches) | 0.292 in. |
Alt to Belden # | 9306 |
Shielded | Yes |
Shield Type | Overall Foil Shield |
