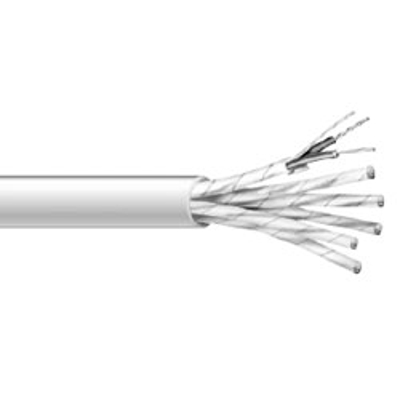

Belden 8777 equals General C6040A, UL 2919, NEC Type CM, CSA CMH
Product Details
Learn everything you want to know about this product to make an informed purchaseBelden 8777 equals General C6040A, UL 2919, NEC Type CM, CSA CMH
A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.
Color:
Gray
Applications:
Applications for total isolation of signal, Computers, Control circuits, Industrial equipment, Suggested voltage rating: 300 volts
Compliances:
- NEC Article 800 Type CMR (UL: 75°C)
- UL Style 2919 (UL: 80°C, 30V)
- CSA CMH (CSA: 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMH Flame Test
Conductor:
Fully annealed, stranded tinned copper per ASTM B-33, twisted pairs
Insulation:
Premium-grade, color-coded polyethylene
Shield:
100% aluminum/polyester, 25% overlap, foil facing out, Stranded tinned copper drain wire each pair
Jacket:
PVC, gray
-20°C to +80°C
Specifications*:
Size: 22 AWG
Number of Pairs: 3
Conductor Stranding: 7/30
Nominal Insulation Thickness: 0.011 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.292 inches
Nominal DCR: Cond.-16.5, Shield-11.3
Vel. of Prop.: 66%
Nominal of Imp.: 63ohm
Nominal Cap. pF/ft: A-24.4, B-43.9.
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 22 AWG |
# of Conductors | 6 Conductors |
O.D. (Inches) | 0.292 in. |
Alt to Belden # | 8777 |
Shielded | Yes |
Shield Type | Individually Foil Shield |
