$178.00

In Stock

Belden 9302 equals General C1670A, NEC Type CM, CSA

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

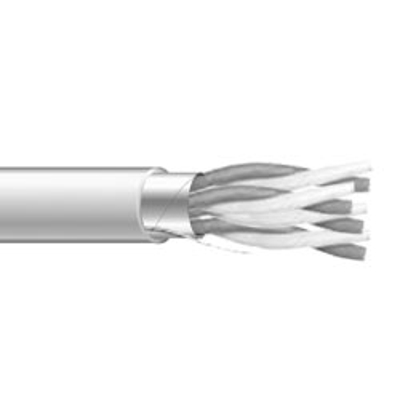

22 AWG, 2 Pair, Communication Cable, Foil Shielded, 500ft or 1000ft Spool

SKU
COMC1670A

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 9302 equals General C1670A, NEC Type CM (UL) c(UL) CSA CMG

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Audio systems, communication circuits, instrumentation and control use. Suggested voltage rating: 300 volts

Compliances:
- NEC Article 800 Type CM (UL: 75°C)
- UL Style 2835 (UL: 60°C, 30V)
- CSA CMG (CSA: 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMH Flame Test

Conductor:
Fully annealed, solid tinned copper per ASTM B-33, twisted pairs

Insulation:
Premium-grade, color-coded S-R PVC



Shield:
100% aluminum/polyester, 25% overlap, foil facing out, Stranded tinned copper drain wire

Jacket:
PVC, gray
-20°C to +75°C

Specifications*:

Size: 22 AWG
Number of Pairs: 2
Conductor Stranding: Solid
Nominal Insulation Thickness: 0.010 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.218 inches
Nomonal Cap. pF/ft: A-32.0, B-57.0

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size22 AWG
# of Conductors4 Conductors
O.D. (Inches)0.218
Alt to Belden #9302
ShieldedYes
Shield TypeOverall Foil Shield
