2000 MCM Cowslip AAC Bare Aluminum

Min: 50 ft., Max: 3000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

2000 MCM Cowslip AAC Bare Aluminum

SKU
AACCowslip-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

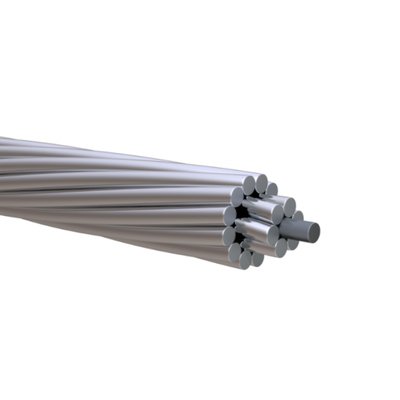

2000 MCM Cowslip AAC Bare Aluminum Conductor

Application:

This wire is suitable for use in spans on wood poles, transmission towers, and other structures where high tensile strength is not required. Applications range from extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.

Applicable Standards:

-ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
- ASTM B 231: Concentric Lay Stranded Aluminum 1350 Conductors.

Construction:
Aluminum alloy 1350 wires concentric lay stranded wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer. Outer layer is right hand lay and reversed in successive layers.

Specifications*:

Size: 2000 MCM
Number of Strands: 91
Class: A
Outside Diameter: 1.631 inches
Weight: 1.875 lbs per ft
Rated Strength (lb/ft): 34200
Resistance OHMS/1000 ft. AC @ 75C: 0.0115
Ampacity: 1518 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size2000 MCM
# of Conductors1 Conductor
O.D. (Inches)1.631
Ampacity1518
