20 Gauge Primary Wire, 500ft or 1000ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

20 Gauge Type GPT Primary Wire, 1000ft Spool

SKU
PWG20

Product Details

Learn everything you want to know about this product to make an informed purchase

***SHIPS WITHIN 2-3 BUSINESS DAYS FROM THE FACTORY***

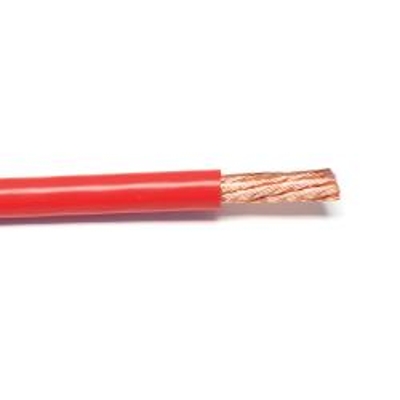

20 Gauge Primary Wire, 80°C, 1000ft Spool

Applications:
General-purpose thermoplastic insulated wire ideal for automotive, truck, trailers, boats, and other point-to-point, low voltage wiring applications. Its jacket surface is smooth enough to easily go through loom or conduit yet tough enough to resist grease, oil, and acid. Meeting the standard for O.E. or replacement applications, this single conductor copper wire is the ideal solution for dependable general purpose needs.

Standards: SAE J1128, SAE J378

Colors Available: Black, Red, White, Green, Yellow, Brown, Blue or Orange

Specifications*:
Size: 20 Gauge
Number of Strands: 10/30
Voltage: Rated at 60V or less
Temp: Rated at 80°C (176°F)
Jacket Material: Polyvinylchloride (PVC)
Outside Diameter: 0.085 inches
Weight: 0.007 lbs per ft.
*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size20 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or SolidStranded
Number of Strands7
O.D. (Inches)0.085
Temp. Rating-40°C ~ 80°C
Insulation MaterialPVC - Polyvinyl Chloride
StandardsSAE J1128
