$28.00

In Stock

Type MTW Wire, Bare Copper Stranding.  500 or 1000' Spool









Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft.
1000 ft.
2500 ft.
Add a length

 Free Shipping on all orders over $1000

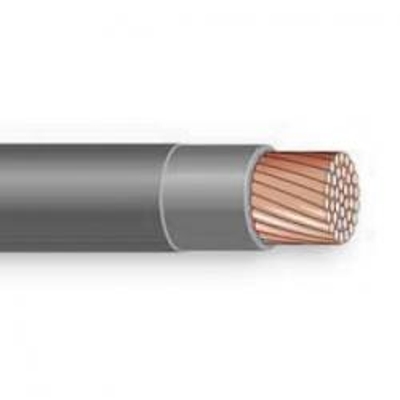

20 AWG, Type MTW/UL1015 Wire, 10 Strand, 500' or 1000' Spool

SKU
MTW20

Product Details

Learn everything you want to know about this product to make an informed purchase

***STRIPED COLORS ARE NON-STOCK ITEMS & MAY TAKE 4-5 WEEKS TO SHIP***

20 AWG MTW/UL1015 Hook-up Stranded Wire. 500ft or 1000ft Spool.

Applications:
20 AWG UL1015 Wire - Primarily used in control cabinets, in machine tool applications and appliance wiring applications. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Conductor:
Bare Copper

Insulation:
Polyvinyl Chloride (PVC)

Standards:
UL recognized AWM Style 1015 per 758. Passes VW-1 vertical flame test. CSA TEW or AWM

Specifications*:

Size: 20 AWG
Number of Strands: 10
Temp: 105°C
Insulation Thickness: 0.037 inches
Outside Diameter: 0.102 inches
Weight: 0.073 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeMTW - Machine Tool Wire
Wire Size20 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
O.D. (Inches)0.102
Insulation MaterialPVC - Polyvinyl Chloride
Direct BurialNo
